Total Power	2350W
Upper heating	Dark IR 450W
Bottom heating	IR 1800W tempering glass is added above bottom heater, heat distribute evenly and improve reworking efficiency
Size of Applicable Chips	≤70mm×70 mm
Size of bottom heating	Large preheat size: 240mm×260 mm
Size of Upper heating	80mm×80mm
Upper heating position control	Up, Down, Right, Left
PCB fixed platform	Slide Guide Bracket
LED Auxiliary Lighting	Y
Force Air Cooling	N
Programmable	Y
Soft Control	Y,  built-in RS232 to USB  connector to connect PC
Voltage	AC220V±10%, 50/60Hz
Size of applicable PCB	≤500*450mm

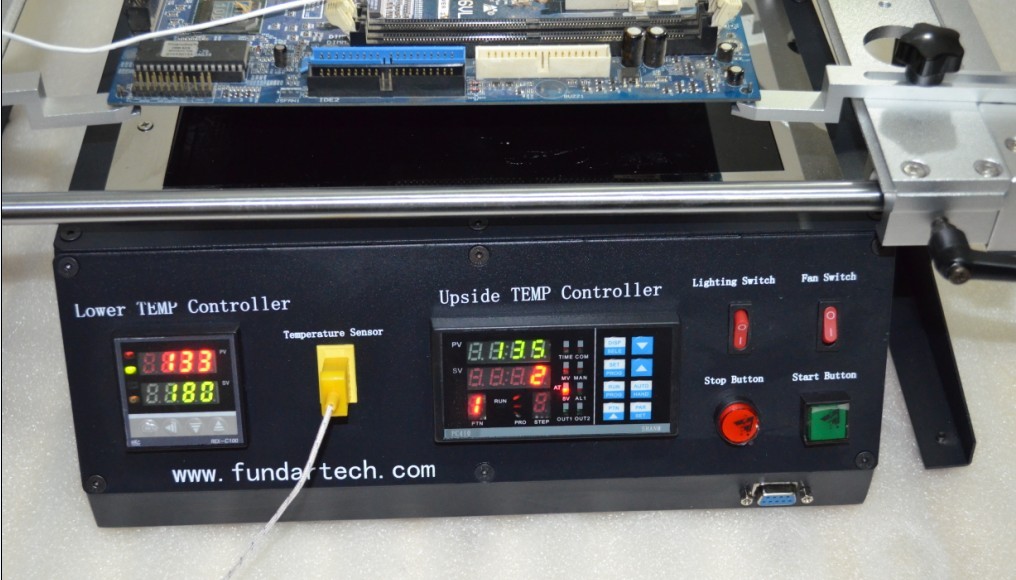

Temperature control Settings	8 levels of (up/down) and constant temperature controls,10 groups storage of curves
Temperature Sensor	OMEGA Thermocouple Wire is more accurate, and more flexible to locate on mainboard
Other Improvment	emergency power switch which can stop the working machine automatically in time when the machine short circuit happens   6pcs jig which can help to fix the mainboard more easily
Dimensions	L475×W480×H420mm
Net weight	17.5kg
