1. Introduction:
1.ACHI BGA Rework Station is designed to meet the increasing everchanging demands of today's fast BGA Rework environments (R).
2.Products apply to the welding of CBGA CCGA CSP QFN MLF PGA, all the green epoxy type BGA chip and other special parts such as metal shielding cover, plastic connector replacement of various and soft PCB.
3.Machine comes along with Manual and video demonstration CD-ROM,The information is easy to understand. Even if you have never engaged in BGA rework , it can be quickly mastered the technology
You’ll find its really the machine you need by its high integration Design, the smaller workbench, non-mixed cables and the convenient operation –all the process of soldering controlled by a button.
The height of Top heating head may adjust by rotating the handle. The Top Infrared heater could rework BGA ICs of large size up to 70*70mm.
4.The Linear guide type Bracket for BGA Reworks can be locked,adjusted by rotating the handle, It can fix PCB board easily, effectively prevent PCB board from deformation.
5.IR-PRO-SC can be connected to a computer with a built-in PC RS232 serial port. It can be controlled by the software. it can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time
The fan could cool the PCB fast and efficiently. Large ir bottom heater(260mm*245mm)could heat the PCB evenly to avoid its deformation. The rate of successful soldering is higher.
6.The top&bottom temperature areas heat independently. The sensitive temperatrue sensor could get the accurate data and the instantaneous information.. The closed-loop temperature control system offers the alarm funciton and the cutting of the power supply automatically.
7.The innovative design gets over the problem of ir heating rework station heating slowly and disorderly caused by the air flow. It can easy deal with the solder free soldering. The max temperature is up to 400 °C.
2. BGA Rework Station Technical Parameters
|
Technic parameter |
|
Upper heating |
Dark IR 400W |
|
Size of Applicable Chips |
≤65mm×65 mm |
|
Bottom heating |
IR 2000W |
|
Size of bottom heating |
260mm×245 mm |
|
Upper heating position control |
Up, Down, Right, Left, back, forth |
|
PCB fixed platform |
Slide Guide, Abnormal Shape Bracket |
|
LED Auxiliary Lighting |
Y |
|
Force Air Cooling |
Y |
|
Programmable |
Y |
|
Soft Control |
Y |
|
Power |
2550W |
|
Weight |
28KG |
|
Voltage |
220V and 110V (The country with the 110V voltage need to buy the voltage to use this item. You can contact us to buy the matching voltage transformer)
|
|
Else |
620mm*630mm*630mm |

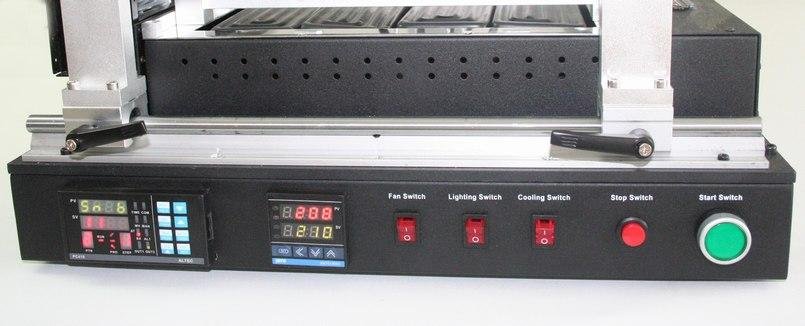

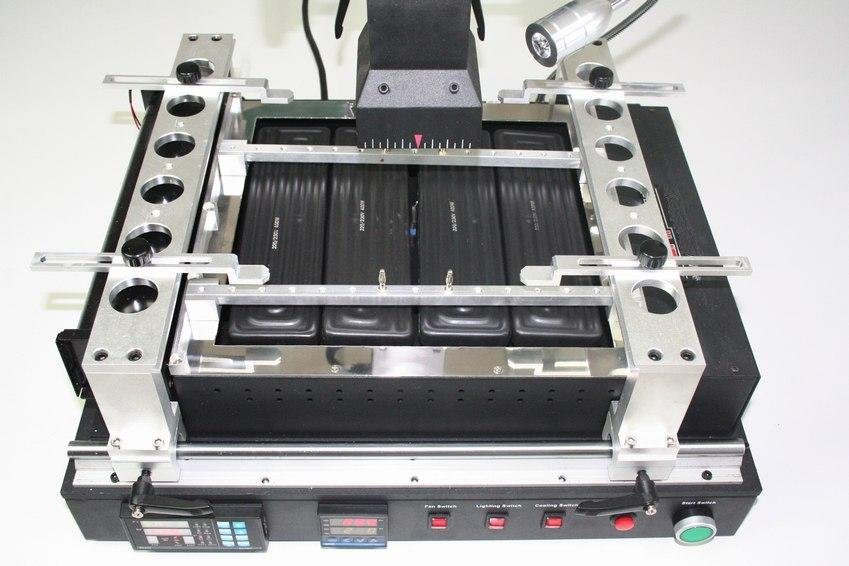

3. Item Units and Pictures (what you see what you get)
|
